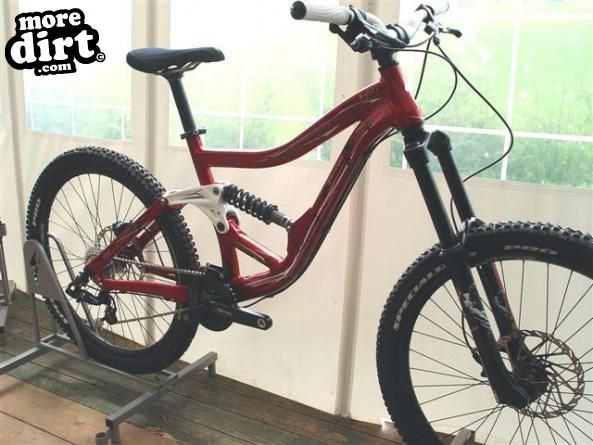

The Big Hit FSR 1 is a capable Freeride or DH bicycle with 6.75 inches of FSR travel, M4 Frame, Marzocchi Z1 forks, Fox Vanilla R shock and Avid Juicy 3 brakes
SPECS:
Braking
Brake Caliper Front Avid Juicy 3 full hydraulic, metallic brake pads, 203mm rotor
Brake Caliper Rear Avid Juicy 3 full hydraulic, metallic brake pads, 203mm rotor
Brake Levers Avid Juicy 3 Hydraulic
Drive
Bottom Bracket Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell
Cassette (Rear Cogs) SRAM PG-830, 8-speed, 11-32t
Chain KMC X8, 8-speed w/reusable missing link
Chainring(s) 34t, 4-bolt, compact 104mm pattern
Crank Truvativ Ruktion, 170mm w/ SBC chain guide
Pedals Specialized Lo-Pro alloy
Gearing
Derailleur Rear SRAM X-7, 9-speed, short cage
Gears 9
Shifter(s) SRAM X4-R, trigger, 8-speed
General
Extras Protective clear coat, derailleur hanger, reflectors, owners manual
Grips Specialized thin lock on grip, alloy bar ends
Handlebar Specialized DH rise bar, 31.8mm bar, 8 degree up, 8 degree backsweep, 640mm wide
Headset 1-1/8" to 1.5" Threadless, alloy, cartridge bearing
Saddle Specialized Enduro, 8mm steel rails, SL foam
Seat Post 6061 butted alloy, two-bolt, 0 offset, 30.9x300mm
Seat Release / Collar 7050 hard anodised alloy collar w/ QR, 34.9mm clamp ID, black
Stem Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged
Suspension
Fork Travel 160mm
Forks Marzocchi Z1 Sport for Specialized, 160mm travel, coil spring, rebound adj., 20mm thru-axle, 1-1/8" to 1.5" tapered alloy steerer tube
Rear Shock Fox Vanilla R coil, rebound adjust, 8.5x2.25", rebound adj., S:450, M:500, L:550
Wheels
Hub Front Specialized Hi-Lo disc, 20mm thru-axle, 36h
Hub Rear Specialized bolt-on, 135mm, machined flange, sealed cartridge bearing, 5mm QR, 36h
Inner Tubes Specialized 26x2.3", Schrader
Rims Specialized P-Disc, 32mm, 36h
Spokes 2.0mm stainless, black, brass nipples
Tire Front Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound
Tire Rear Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound
Wheel Size 26"
SPECS:
Braking
Brake Caliper Front Avid Juicy 3 full hydraulic, metallic brake pads, 203mm rotor
Brake Caliper Rear Avid Juicy 3 full hydraulic, metallic brake pads, 203mm rotor
Brake Levers Avid Juicy 3 Hydraulic
Drive
Bottom Bracket Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell
Cassette (Rear Cogs) SRAM PG-830, 8-speed, 11-32t
Chain KMC X8, 8-speed w/reusable missing link
Chainring(s) 34t, 4-bolt, compact 104mm pattern
Crank Truvativ Ruktion, 170mm w/ SBC chain guide
Pedals Specialized Lo-Pro alloy
Gearing
Derailleur Rear SRAM X-7, 9-speed, short cage
Gears 9
Shifter(s) SRAM X4-R, trigger, 8-speed
General
Extras Protective clear coat, derailleur hanger, reflectors, owners manual
Grips Specialized thin lock on grip, alloy bar ends
Handlebar Specialized DH rise bar, 31.8mm bar, 8 degree up, 8 degree backsweep, 640mm wide
Headset 1-1/8" to 1.5" Threadless, alloy, cartridge bearing
Saddle Specialized Enduro, 8mm steel rails, SL foam
Seat Post 6061 butted alloy, two-bolt, 0 offset, 30.9x300mm
Seat Release / Collar 7050 hard anodised alloy collar w/ QR, 34.9mm clamp ID, black
Stem Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged
Suspension
Fork Travel 160mm
Forks Marzocchi Z1 Sport for Specialized, 160mm travel, coil spring, rebound adj., 20mm thru-axle, 1-1/8" to 1.5" tapered alloy steerer tube
Rear Shock Fox Vanilla R coil, rebound adjust, 8.5x2.25", rebound adj., S:450, M:500, L:550
Wheels
Hub Front Specialized Hi-Lo disc, 20mm thru-axle, 36h
Hub Rear Specialized bolt-on, 135mm, machined flange, sealed cartridge bearing, 5mm QR, 36h
Inner Tubes Specialized 26x2.3", Schrader
Rims Specialized P-Disc, 32mm, 36h
Spokes 2.0mm stainless, black, brass nipples
Tire Front Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound
Tire Rear Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound
Wheel Size 26"
