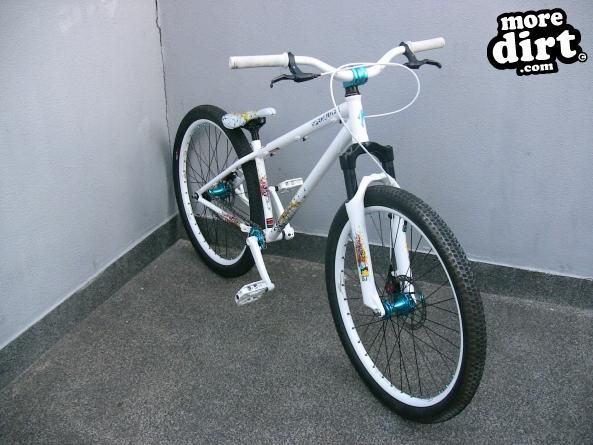

Specialized - P1 2010

Specialized P1 2010
FRAME- P. Series, tubes Reynolds Cr-Mo 520, and diagonal tubes of varying thickness, the steering tube manipulated externally, support for disk, horizontal dropout with 6mm Offset w / tensioner system integrated, changes to disc brakes

FORK- Marzocchi DJ3, 80mm, Cr-Mo spine, legs, 32mm Cr-Mo, jugs, magnesium crown cold forged linear damping, spring / mcu w / preload adjustment, spring "nuts"

CASH MANAGEMENT- cartridge bearing integrated, Campy type, 1-1/8 "threadless (orange: not integrated)

ADVANCE- SBC Aggro Stem, 3D forged / CNC, 4-bolt, length 35mm

High HANDLEBAR- Aluminium, 55mm rise, 680mm width, indentation 8 degrees, 7 degrees tilt
TAPES AND GRIPS Fuse BMX, single compound, closed sides, 140mm

FRONT BRAKE- Avid BB5, mechanical disc, G2 Clean Sweep 160mm disc

REAR BRAKE- Avid BB5, mechanical disc, G2 Clean Sweep 140mm disc

BRAKE LEVERS- Avid FR-5, aluminum 2-finger, linear action

TAPE- Single speed, Cr-Mo, 1 / 8 "x 12t

CURRENT- Z510HX KMC, 1 / 2 "x 1 / 8" anti-drop inner links

PEDAL- Fuse 2-piece tubular Cr-Mo heat treated w / 19mm hollow shaft

DISHES- Aluminum with CNC cut 6061, 25D, design Motostar
Euro bottom bracket with screw cups in aluminum, four cartridge bearings, metal spacers

PEDALS- SBC Lo-A1, aluminum platform w / removable pins, 9 / 16 "

AROS- P. Disc AM, to disk, double wall with eyelets, 36h

FRONT HUB- Forged Aluminum, machined rim Hi / Low support for disk, 36f, axle 3 / 8 "
Singlespeed cassette rear hub forged aluminum, machined edges and support for the disc, double sealed, 36h, axle 3 / 8 ", 1 / 8" x 12d

RAYS- Inox 2mm (14g)

FRONT TIRE- Specialized Rhythm Lite Control, 26x2.3 ", 60TPI, flexible sidewalls

REAR TIRE- Specialized Rhythm Lite Control, 26x2.3 ", 60TPI, flexible sidewalls

CHAMBERS-OF-AIR- Schraeder Valve

SADDLE- Specialized Fuse Lo Pro, rails 8mms, cushioned PVC front and back

SEAT POST- Aluminium, 2 screws, straight, no indentation, micro adjust, 25.4mm

GRASP- Spike Integrated, w / replaceable single bolt.
